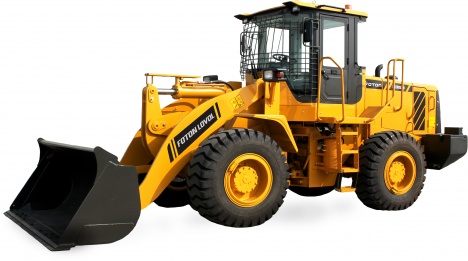

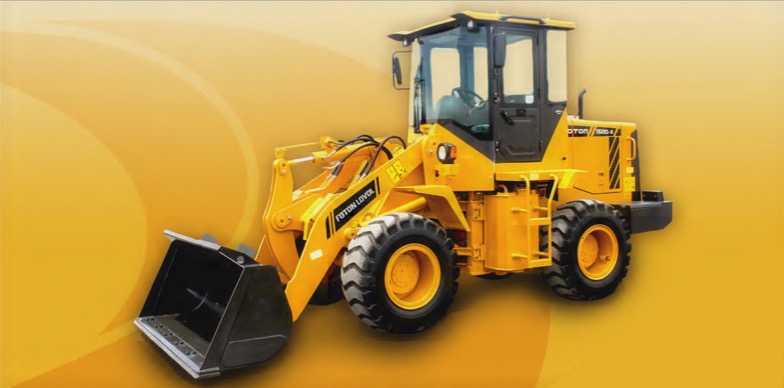

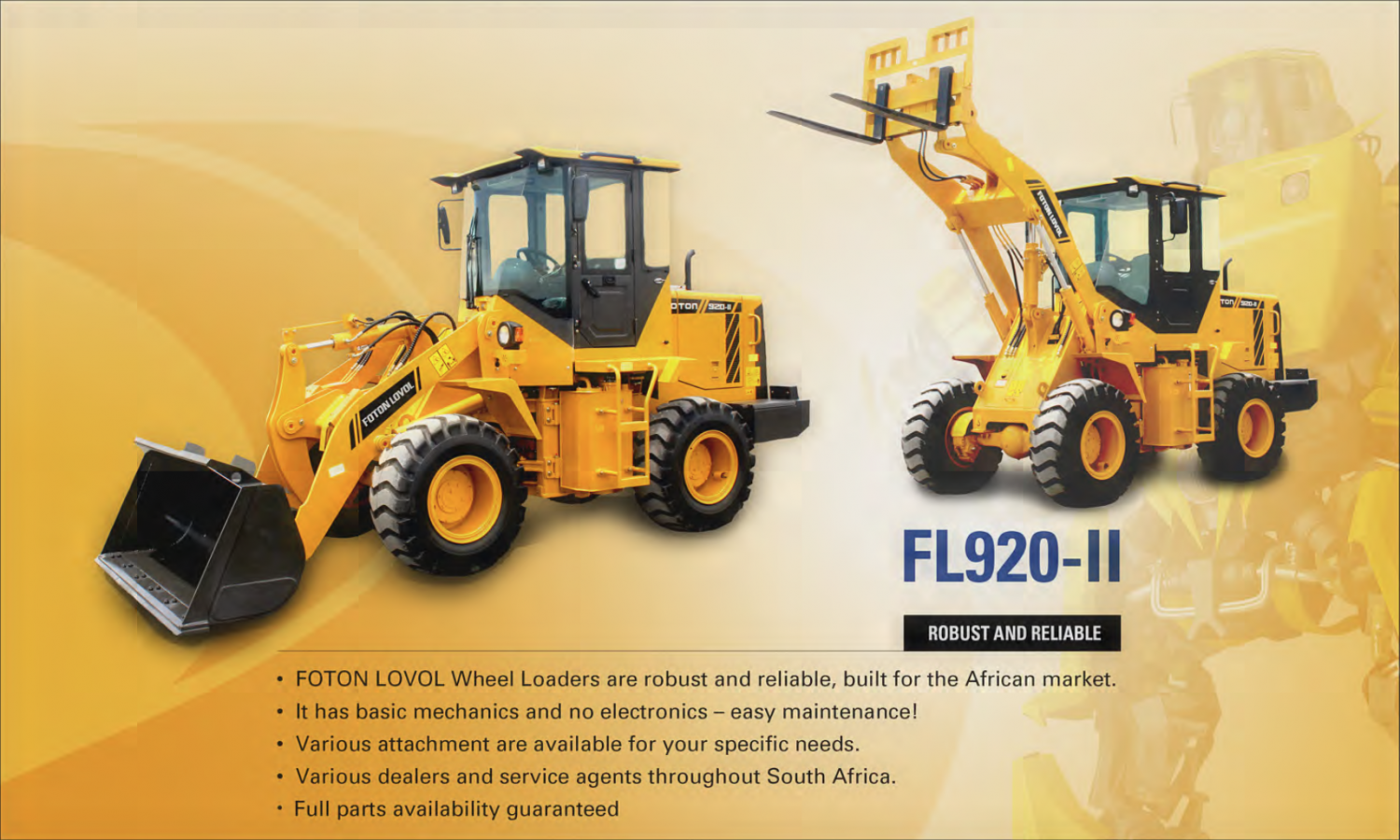

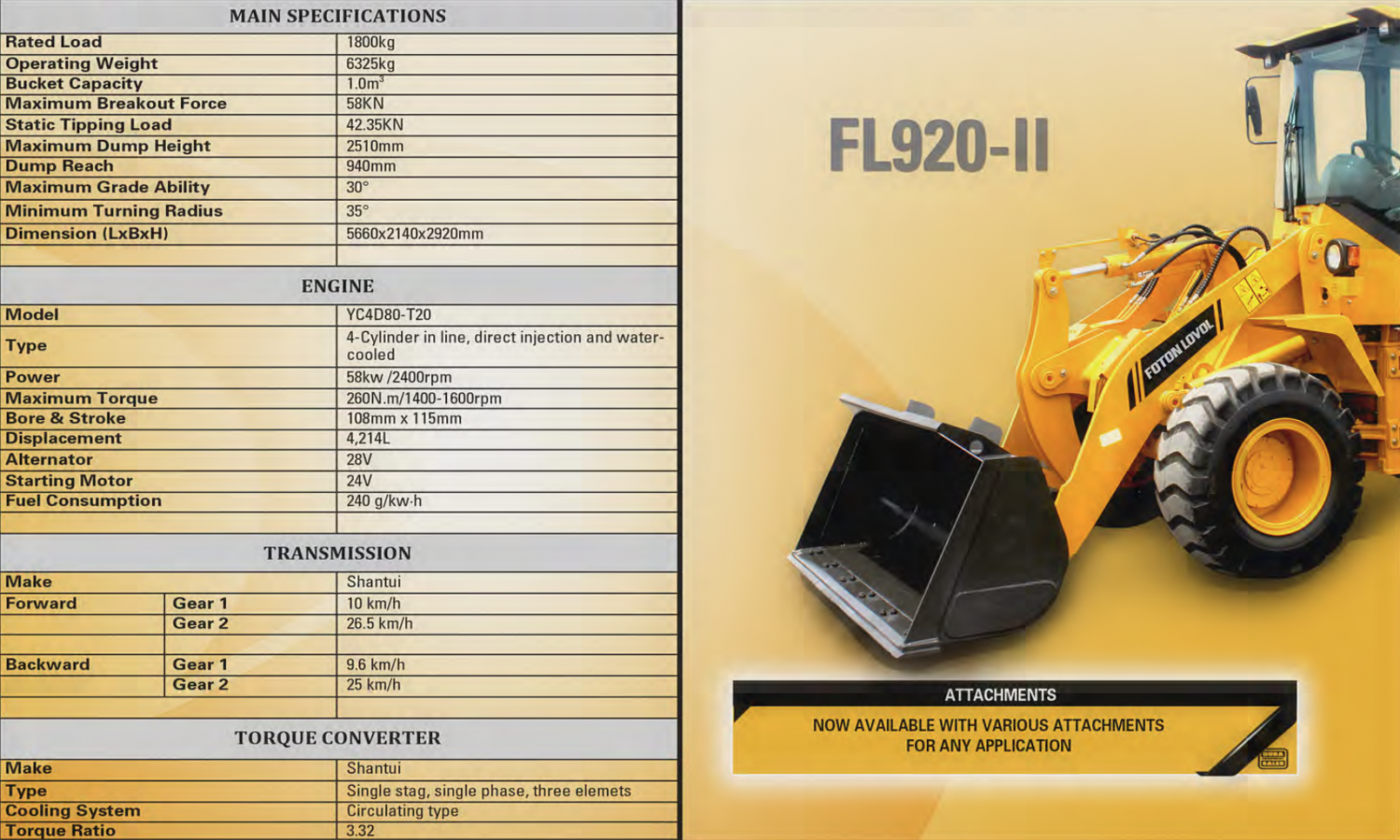

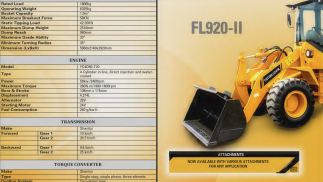

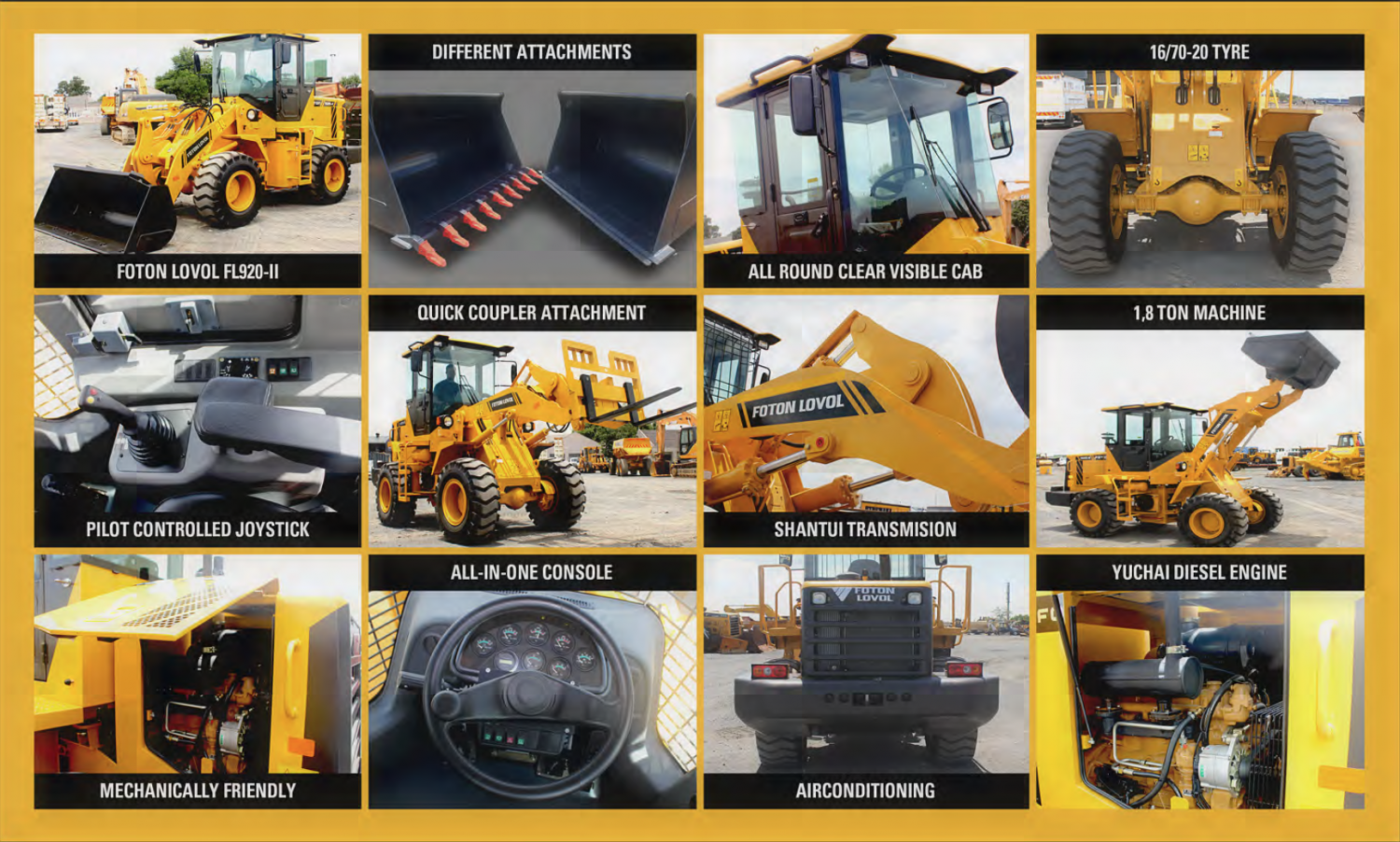

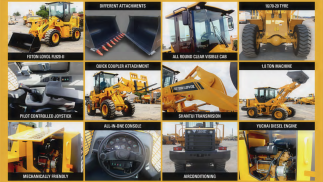

| MAIN PERFORMANCE |
|
|
| Rated Load |
1800 kg |
|
| Operation Weight |
6325 kg |
|

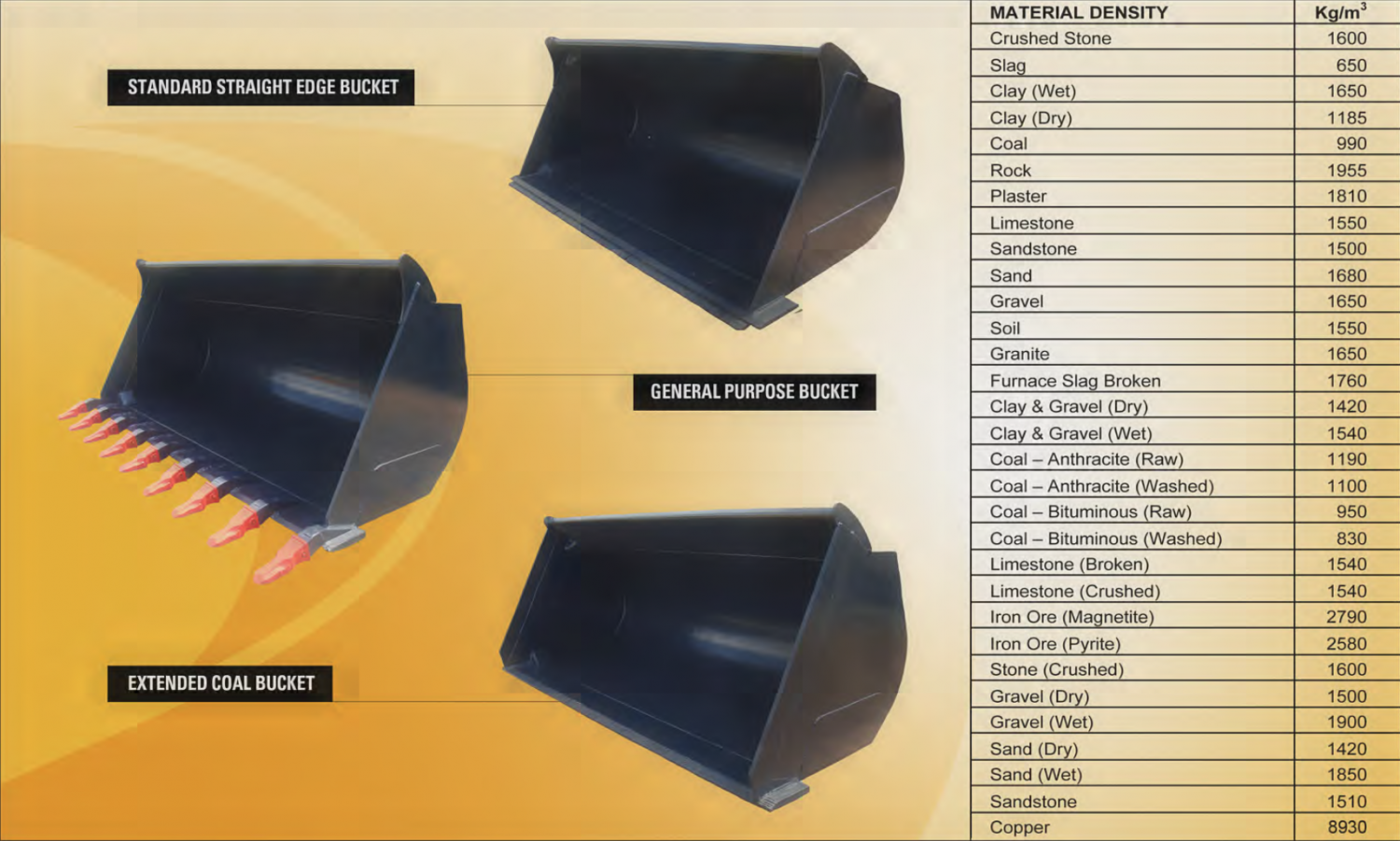

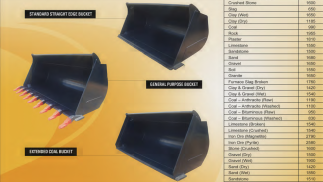

| Rated Bucket Capacity |
1.0 m³ |
|
| Maximum Breakout Force |
58 KN |
|
| Static Tipping Load |
42,35 KN |
|
| Maximum Dump Height |
2510 mm |
|
| Dump Reach |
940 mm |
|
| Maximum Grade Ability |
30° |
|
| Minimum Turning Radius |
35° |
|

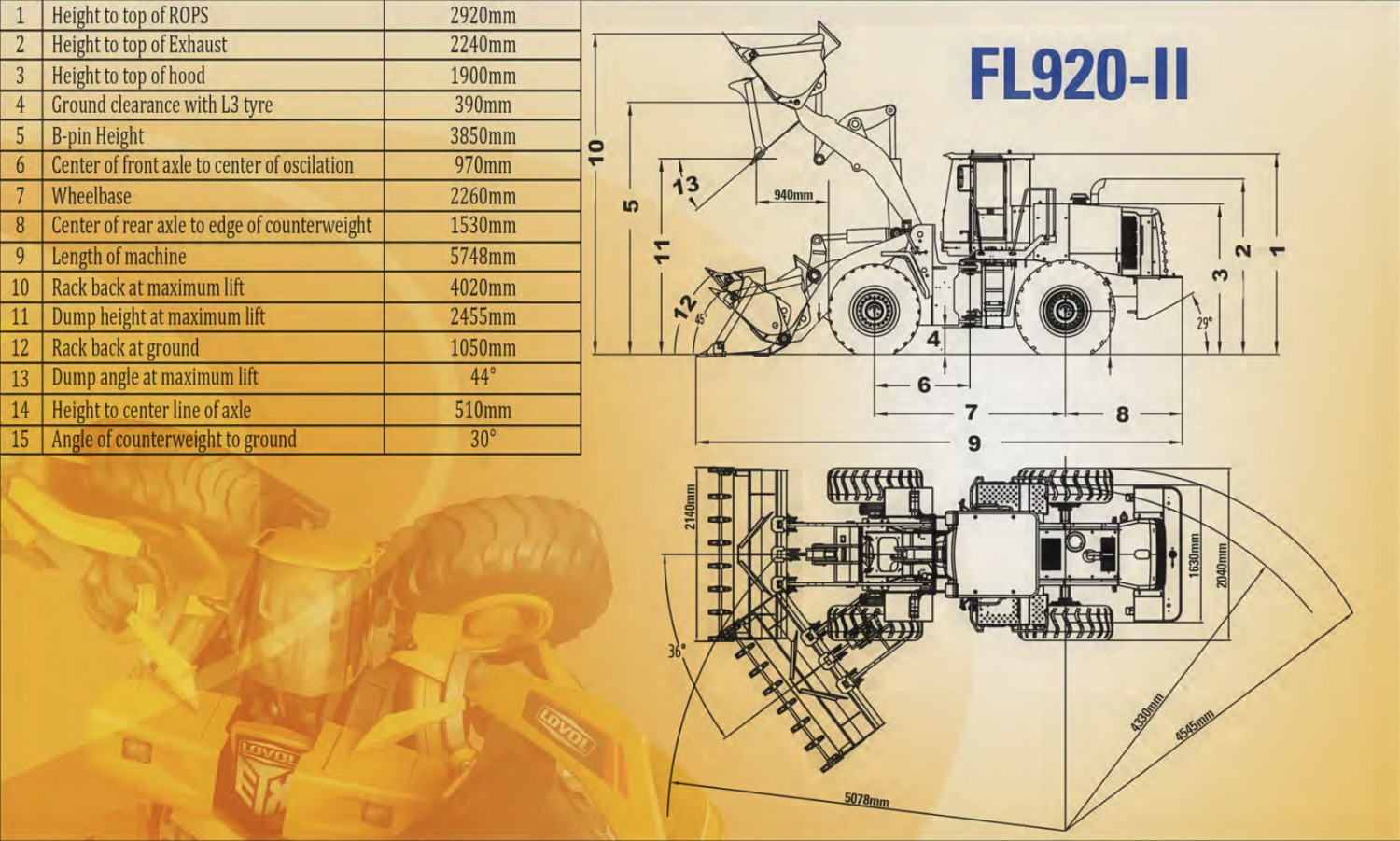

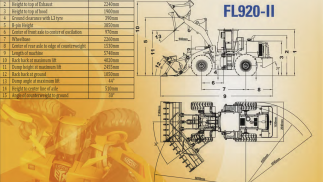

| Dimensions |
5660 x 2140 x 2920 mm |
|
| ENGINE |
Yuchai Diesle engine |
|
| Model |
Yuchai YC4D80-T20 |
|
| Type |
4-Cylinder In Line,Direct Injection and water cooled |
|
| Power |
58Kw/2400RPM |
|
| Max Torque |
260 Nm |
|
| Bore and Stroke |
108 x 115 mm |
|
| Displacement |
4214L |
|
| Alternator |
28v, 1000 w |
|
| Starting Motor |
24v, 4000 w |
|
| Fuel Consumption |
240g/Kw.h |
|
| SHANTUI TRANSMISSION |
|
|
| Forward |
Gear 1 |
10 km/h |
|
Gear 2 |
26.5 km/h |
| Backward |
Gear 1 |
9,6 km/h |
|
Gear 2 |
25 km/h |
| SHANTUI TORQUE CONVERTER |
|
|
| Type |
Single-stage, |
|
| Single phase , three elements |
|
|
| Torque Ratio |
3.32 |
|
| Cooling System |
Circulation Type |
|

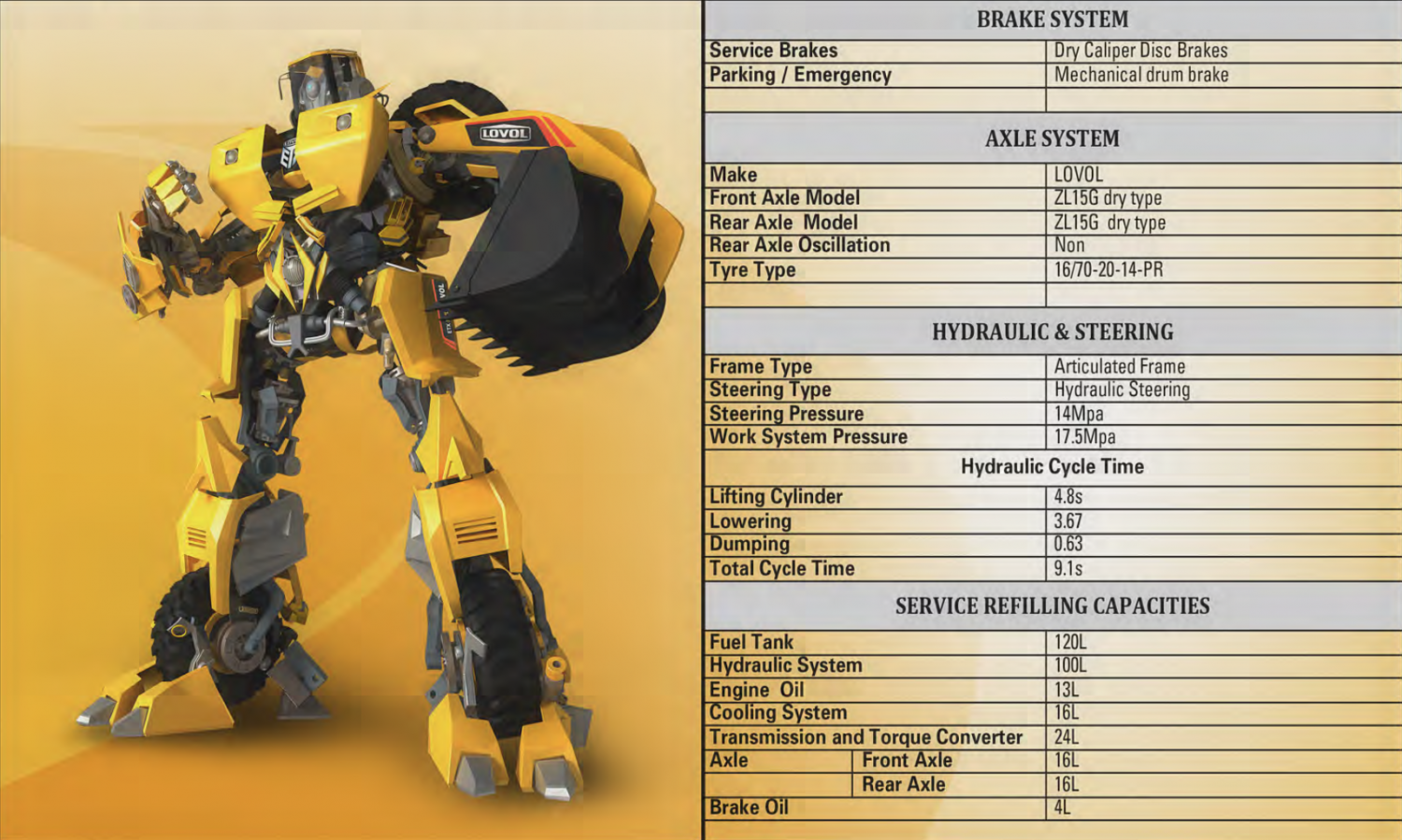

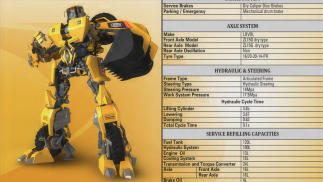

| BRAKE SYSTEM |
|
|
| Service Brakes |
Caliper Disc Brake |
|
| Park/Emergency Brake |
Mechanical Drum Brake |
|
| LOVOL AXLE |
|
|
| Front Axle Model |
LW9305 |
|
| Rear Axle Model |
LW9305 |
|
| Tyre Type |
16/70-20-14-PR |
|
| HYDRAULIC AND STEERING SYSTEM |
|
|
| Frame Type |
Articulated Frame |
|
| Steering Type |
Hydraulic Steering |
|
| Work System Pressure |
17,5 Mpa |
|
| Hydraulic Cycle Time: |
|
|
| Lifting Cylinder (Full Load) |
4,8s |
|
| Lowering (Empty) |
3,67s |
|
| Dumpering |
0,63s |
|
| Total Cycle Time |
9,1s |
|
| SERVICE AND REFILLING CAPACITY |
|
|
| Water Tank |
16L |
|
| Fuel Tank |
120L |
|
| Sump |
13L |
|
| Front Axle |
16L |
|
| Rear Axle |
16L |
|
| Torque Convertor / Transmission |
24L |
|
| Hydraulic System |
100L |
|
| Brake Oil |
4L |
|
